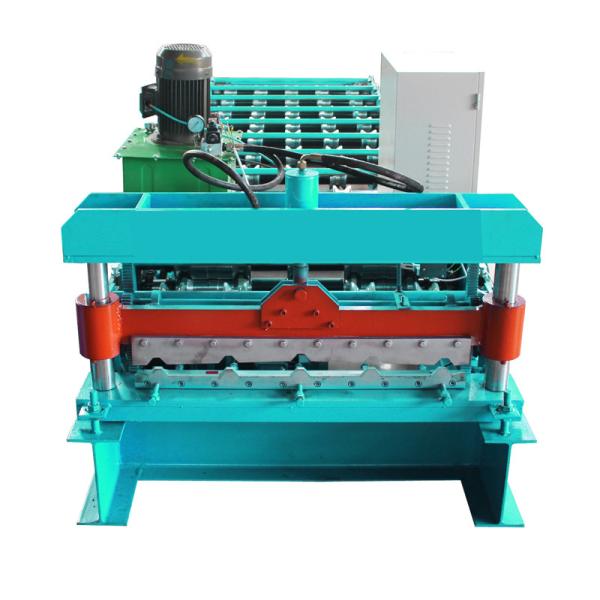

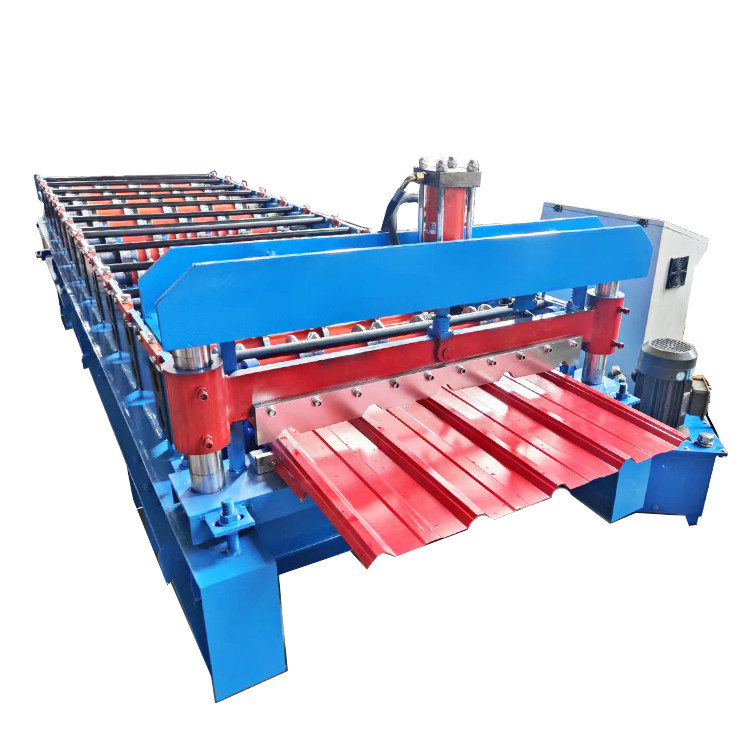

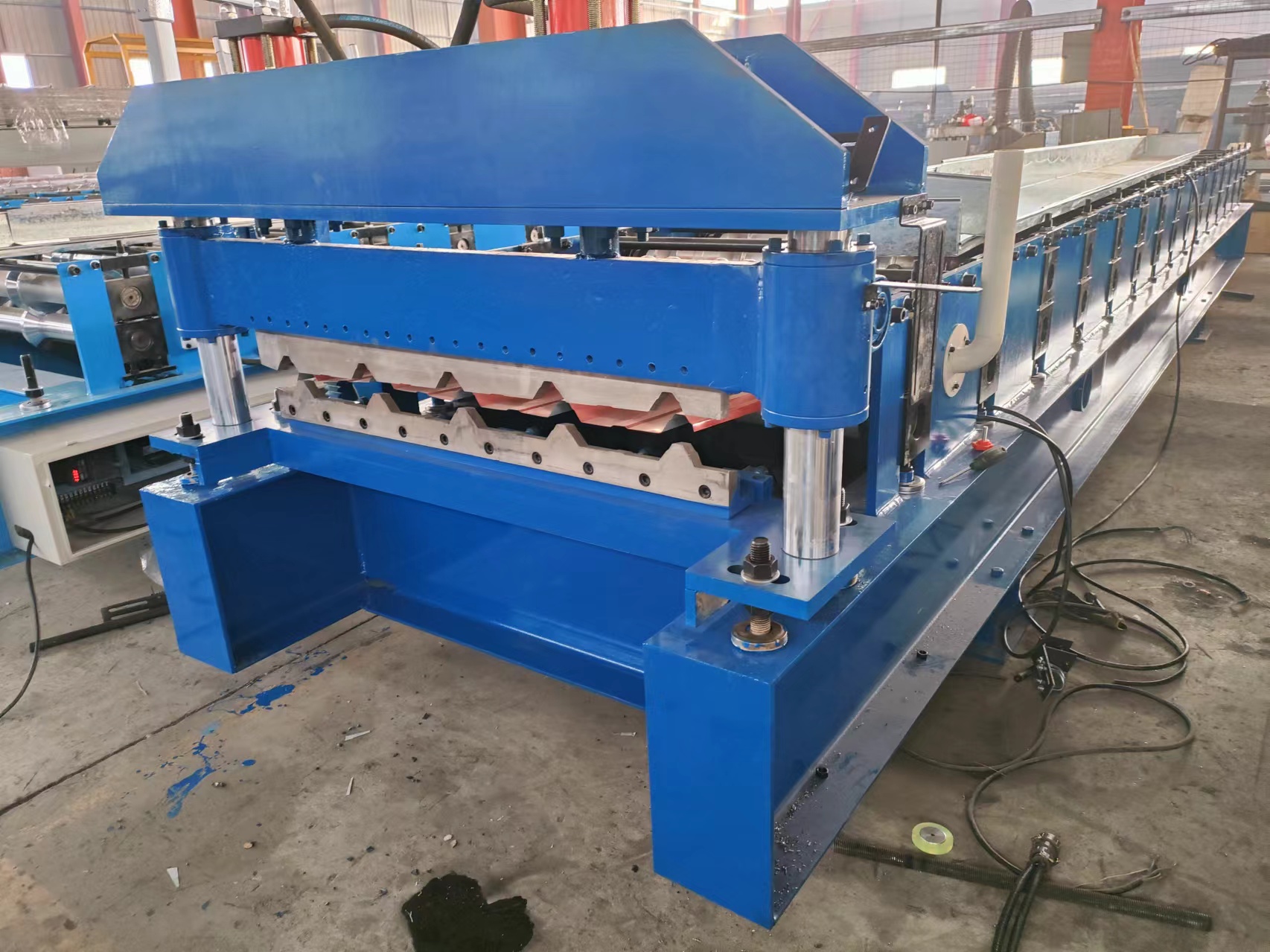

Trapezoid Roof Tile Roll Forming Machine 5 Ribs High Capacity Energy Saving
Brief Introduction
Roof roll forming machines has different types .Trapezoid Roof Tile Roll Forming Machine 5 Ribs High Capacity Energy Saving widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product.It has advantage of pretty appearance, durable using and so on.
Full Automatic Computer Control make easy to operation.
Machine roller and shaft is produced by exact demands and control . The roller material processing method is by CR12 MOV heat
treatment 58℃-62℃ . The product quality is durable and long service life .
Specification
item | value |
Production Capacity | 0-20m/min |
Rolling thinckness | 0.3-0.8mm |
Feeding width | 914-1450mm |
Product name | Roof Sheet Forming Machine |
Raw material | PPGI PPGL GI GL |
Shaft material | 45# Steel Outer Diameter: 70mm |
Cutting blade material | Cr 12 High Grade Steel |
Roller material | 45#steel Chrome Plated |
Main frame | 350H Steel |
Feature | High Production Speed |
Motor brand | Lichao |
Decoiler | 5T Manual Decoiler |
Cutting system | Hydraulic Automatic Cutter |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Packing and shipping details
1. Need one 40ft container.
2. Fit for ocean shipping.
3. The main body of the roll forming machine will be naked packing into the container, covered with plastic film.
4. Steel wire fixes the machine into the container, in case of any damage when shaking on the sea.
5. The spare parts will be packed into the carton box.
6. The received goods table put into a carton box.
7. Manual decoiler naked package.
